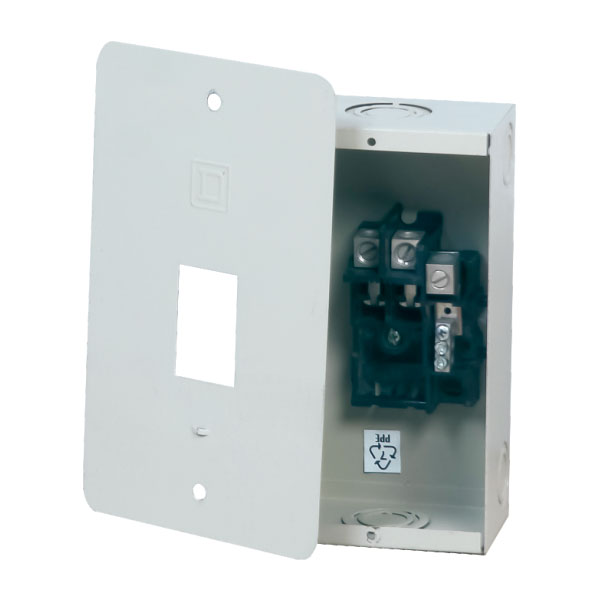

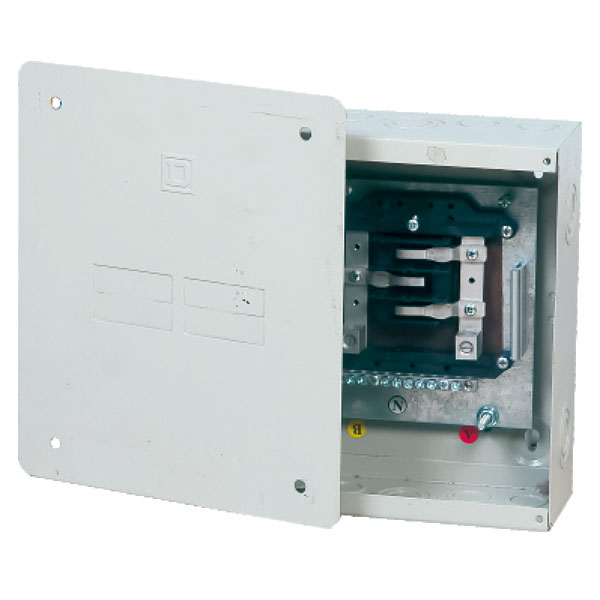

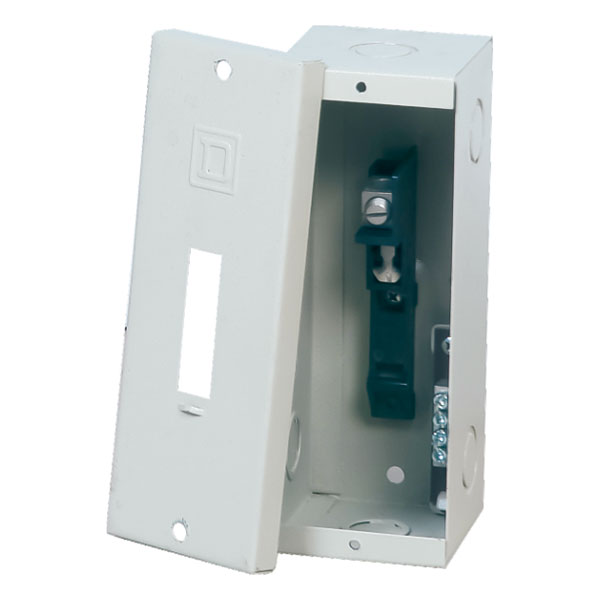

HPE3 Load Centers

Model: HPE3 Load Centers

Range: Maxguard

Main Export Markets: America, Europe, Asia, Oceania, Africa

Minimum Order: 2000

Compliance Standard: IEC-60439

Enquiry Skype Online

Product Features	Specifications	Download	Inquiry

Features:

• Enclosures are made of 0.8-1.2mm cold rolled steel

• Electrostatically applied polyester epoxy powder finish

• Knockouts provided on all sides for easy cable entry

• Accept square D type plug-in circuit breaker.

• Flush and surface mounting

Ampere Rating	ranch Circuits Max. No. of 1-Pole Circuits		Indoor Enclosure-NEMA Type 1 Catalog Dimensions(mm) Number" Height Width Depth
100	1	1	HPE3-01100	203	76	78
100	2	2	HPE3-02100	217	117	78
100	4	4	HPE3-04100	254	214	84
125	6	6	HPE3-06100	254	214	84
125	8	8	HPE3-08100	311	214	84

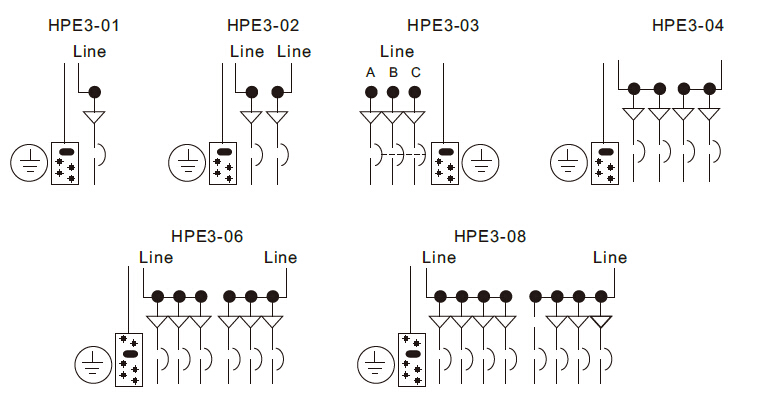

Connection Drawing:

Click Download
